Osaka Zoki Valve Industry Co., Ltd. is expertly manufacturing and distributing high-quality valves for marine and ground use and other peripheral devices.
Our company is manufacturing high-quality products through our established quality control system and furthermore developing new products in accordance with our customers' needs, on basis of development ability that is one of our strong points. Please don't hesitate to contact us.
|
 Valve
|
| compliant with JIS F 7427:2005 |
Products/Equipment:
|
Globe valve, Angle valve,
Screw-down check globe valve, Screw-down check angle valves of Ductile Iron |
| Model: |
FGD,FLD,FGND and FLND Series FCD Valves |
| Type: |
Class B , Class BS , Class S |
|  |

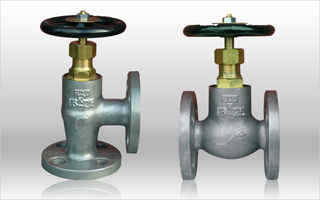

A valve that can be substituted for JIS F 7427 (Ships and marine technology − Bronze valves). The valve is compatible not only with piping but also with sites in high pressure and high temperature (such as gauge valve) because it has a body made of FCD (Ferrum Casting Ductile) that is superior to conventional bodies in resistant properties to heat and pressure as well as durability. This valve, compliant with JIS F 7427, can be substituted for conventional JIS F 7427 valves you are currently using.
For valves having this diameter, only our company has obtained type approval from classification societies (NK, ABS, LR, etc.) (as of January 2012).
Our company is using domestic casts for the body and parts produced by domestic manufacturers or our company itself, conducting all processes from assemblage, through inspection and classification survey to shipment by ourselves, and providing “safe and trusty products made in Japan.” |
| Type |
Nominal Size (mm) |
Model |
5K globe valve (Class B)
5K angle valve (Class B)
5K screw-down check globe valve (Class B)
5K screw-down check angle valve (Class B) |
15～40 |
FGD515B~FGD540B
FLD515B~FLD540B
FGND515B~FGND540B
FLND515B~FLND540B |
5K globe valve (Class BS)
5K angle valve (Class BS)
5K screw-down check globe valve (Class BS)
5K screw-down check angle valve (Class BS) |
FGD515BS~FGD540BS
FLD515BS~FLD540BS
FGND515BS~FGND540BS
FLND515BS~FLND540BS |
5K globe valve (Class S)
5K angle valve (Class S)
5K screw-down check globe valve (Class S)
5K screw-down check angle valve (Class S) |
FGD515S~FGD540S
FLD515S~FLD540S
FGND515S~FGND540S
FLND515S~FLND540S |
16K globe valve (Class B)
16K angle valve (Class B)
16K screw-down check globe valve (Class B)
16K screw-down check angle valve (Class B) |
FGD1615B~FGD1640B
FLD1615B~FLD1640B
FGND1615B~FGND1640B
FLND1615B~FLND1640B |
16K globe valve (Class BS)
16K angle valve (Class BS)
16K screw-down check globe valve (Class BS)
16K screw-down check angle valve (Class BS) |
FGD1615BS~FGD1640BS
FLD1615BS~FLD1640BS
FGND1615BS~FGND1640BS
FLND1615BS~FLND1640BS |
16K globe valve (Class S)
16K angle valve (Class S)
16K screw-down check globe valve (Class S)
16K screw-down check angle valve (Class S) |
FGD1615S~FGD1640S
FLD1615S~FLD1640S
FGND1615S~FGND1640S
FLND1615S~FLND1640S |
| *If there is a preferred size for you, please feel free to make inquiry at us. |
| [ Allowable maximum working preessure ] |
| Service |
Allowable maximum working preessure (MPa) |
| Class B ＆ BS |
Class S |
5K globe valve, 5K angle valve,
5K screw-down check globe valve, 5K screw-down check angle valve |
| Steam of 300°C or less |
- |
0.5 |
| Steam and Thermal oil of 220°C or less |
0.6 |
Steam and Thermal oil of 220°C or less
Fuel oil of 150°C or less
Air, gas, oil and pulsation water |
0.5 |
| Non-shock water or 120°C or less |
0.7 |
16K globe valve, 16K angle valve,
16K screw-down check globe valve, 16K screw-down check angle valve |
| Steam of 300°C or less |
- |
1.6 |
Steam and Thermal oil of 220°C or less
Fuel oil of 150°C or less |
1.6 |
| Air, gas, oil and pulsation water |
2.0 |
| Non-shock water or 120°C or less |
2.2 |
| *Development and Design of New-type Valve in Progress. |
Soot Blower |

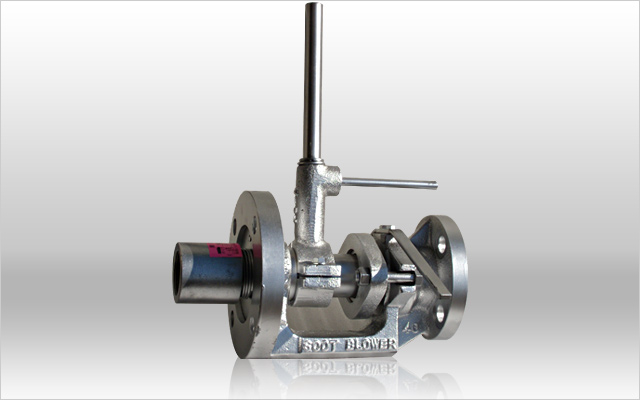

The soot blower we manufacture is for purposes of:
(i) removal of soot having adhered onto heat transfer surfaces of marine boilers, and
(ii) washing of exhaust gas economizers by water |
|
 |
Efficiency of heat exchange is decreased by adherence of soot and/or dust, contained in combustion gas, onto heat transfer surfaces of sooted blowpipes (such as generating tubes, superheater tubes and water-wall tubes) in boilers. To prevent the decrease in the efficiency of heat exchange, the soot blower is provided in the boiler. Normally, the adherent soot and/or dust are blown off away by steam produced by the boiler and blasted onto the sooted blowpipes. Other than steam, compressed air or the like can be used as the jetted medium.
Our company is manufacturing various soot blowers, other than the product in the photograph.
Please don't hesitate to contact us about the products. |
| *Plan for Developing New Automatic Soot Blower is Going On |
Custom-made Products |
* JIS F 7427 (marine bronze valves), sizes of 15 to 40, globe valve, angle valve, screw-down stop check globe valve and angle valve

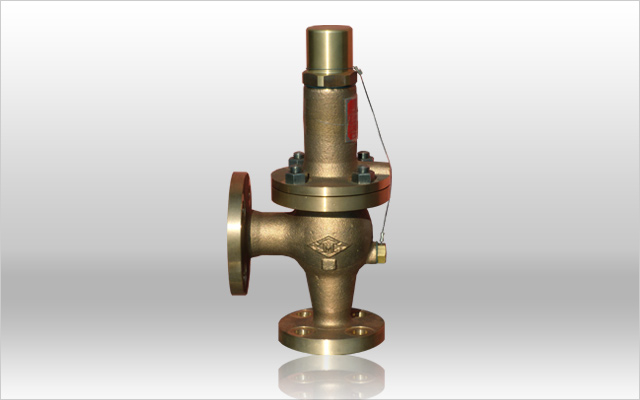

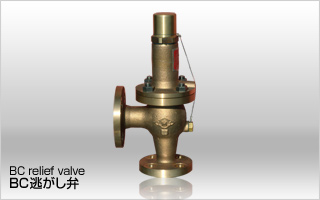

* Various relief valves
* Full bore safety valve (Product name “MAXI FLOW”) |
|
 |

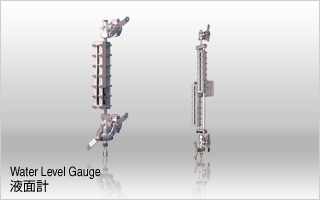

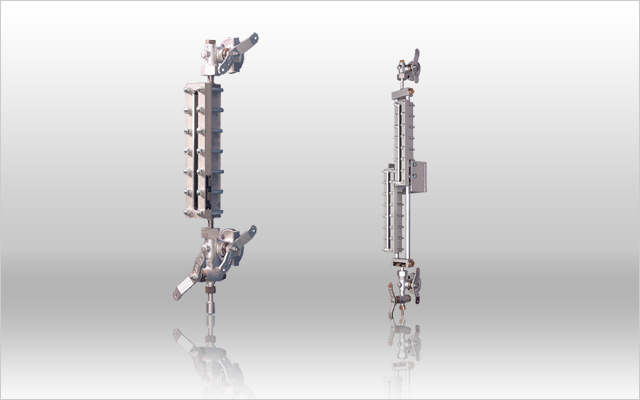

Water Level Gauge and Valve Cocks Dealt by Us |
| Please feel free to make inquiry at us about replacements, parts and/or the like. |
|
 |
|
